Steam Tables for Excel based on IAPWS-IF97 (32 bit & 64 bit)

For Excel

2007/2010(32 bit & 64 bit) /2013(32 bit & 64 bit) /2016(32 bit & 64 bit) /2019(32 bit & 64 bit) /365 desktop(32 bit & 64 bit)Operating system Windows 7 / Windows 8 / Windows 8.1 / Windows 10.

Mollier DiagramsBONUSEach license for the Steam97 Excel Add-In also inludes a

free licensefor the(Steam97 Desktop Application$200 value).The

allows calculation of steam properties and the display of calculated properties on Mollier (Steam) Diagrams, printing of diagrams etc...Steam97 Desktop ApplicationThis offer cannot be combined with any other offer that we might have.

The Steam97 Excel Add-In library calculates 30 thermodynamic and transport properties of water and steam in SI and English units.

It allows 16 different combinations of input variables to be used for calculations.

Input variables that can be used are:

- 1 Pressure
- 2 Temperature
- 3 Enthalpy
- 4 Entropy
- 5 Volume
- 6 Internal energy
- 7 Steam quality

The library is fully integrated in Excel, and available functions can be used in the same way as any other Excel function.

Main features of the library:

- Professional quality, industrial strength software, proven in real world applications
- Based on the international standard formulation (
IAPWS-IF97)- License includes
32 bitand64 bitversion of the library- Developed in
C++for maximum speed, thoroughly tested for accuracy- Extend the library with User Defined Functions (
UDF)- Call Steam97 functions from
VBA(samples are included in the release version)- Easy to install and easy to use
- One year free technical support

The following figure shows a sample spreadsheet included in the download package.

**Steam97 Excel Add-In - Sample calculations in Excel**

The library uses new industrial formulation for steam tables, called *"IAPWS Industrial Formulation 1997 for the Thermodynamic Properties of Water and Steam (IAPWS-IF97)"*, and replaces the previous industrial formulation for steam tables, IFC-67.

IAPWS-IF97 improves significantly both accuracy and speed of the calculation of the thermodynamic properties compared with the old formulation.

For transport properties calculations are based on the latest internationally accepted equations also available from IAPWS.

## The Steam97 Excel Add-In libraries cannot be shipped to a third party as a part of your VBA application. If you need a royalty free library please refer to the

NOTE:Steam97 ActiveX DLL.

Operating system Windows 7 / Windows 8 / Windows 8.1 / Windows 10.

Excel 2007 / 2010 (32 bit & 64 bit) / 2013 (32 bit & 64 bit) / 2016 (32 bit & 64 bit) / 2019 (32 bit & 64 bit) / 365 desktop (32 bit & 64 bit).

User privileges

Installation and use of the library requiresstandard userprivileges or better.

Compact DesignIMPORTANTThis software is designed to be easy to use. There are 32 functions (16 for SI units and 16 for English/Imperial units). Each function can calculate 30 properties. As a concesquence the library covers 16*2*30 =

960combinations.Instead of creating hundreds of functions, the library provides access to steam properties covering 960 combinations in only 32 functions. This significatly

reduces the learning curveandsimplifies the useof the library.

The following functions are available in the Steam97 Excel Add-In:

Function List in SI and E units - Steam97 Excel Add-In v3.1 | ||||||
---|---|---|---|---|---|---|

# | Function Name SI Units | Function Name English Units | Input Argument 1 | Input Argument 2 | Input Argument 3 | Valid in Region |

1 | SatPXsi | SatPXe | p | x | propertyID | saturation |

2 | SatTXsi | SatTXe | t | x | propertyID | saturation |

3 | SteamPTsi | SteamPTe | p | t | propertyID | all |

4 | SteamPHsi | SteamPHe | p | h | propertyID | all |

5 | SteamPSsi | SteamPSe | p | s | propertyID | all |

6 | SteamPUsi | SteamPUe | p | u | propertyID | all |

7 | SteamPVsi | SteamPVe | p | v | propertyID | all |

8 | SteamTHsi | SteamTHe | t | h | propertyID | all |

9 | SteamTSsi | SteamTSe | t | s | propertyID | all |

10 | SteamTUsi | SteamTUe | t | u | propertyID | all |

11 | SteamTVsi | SteamTVe | t | v | propertyID | all |

12 | SteamHSsi | SteamHSe | h | s | propertyID | all |

13 | SteamHVsi | SteamHVe | h | v | propertyID | all |

14 | SteamUSsi | SteamUSe | u | s | propertyID | all |

15 | SteamUVsi | SteamUVe | u | v | propertyID | all |

16 | SteamVSsi | SteamVSe | v | s | propertyID | all |

- "
**all**" means valid in all 5 regions as defined by the IAPWS-IF97, see the diagram at the bottom of the page. - The third argument "
**propertyID**" specifies which property to calculate, see the "Steam Properties" table below. - Since "
**propertyID**" is string type it must be enclosed in quotes, see an example below.

To download a list of all available functions in the PDF format, switch to the "

Downloads" tab and go to a section "Quick reference documents".

In order to easily identify functions to be used, function names are formated using the following rules:

- Functions applicable only in the saturation region, as defined by the IAPWS-IF97, start with
**Sat** - Functions applicable in all regions, as defined by the IAPWS-IF97, start with
**Steam** - Next follow two capital letters denoting the first and the second input parameters of a function, for example
**PT**stands for**pressure**and**temperature**respectively - Function names ending with
**si**mark functions to be used for calculations in**SI Units** - Function names ending with
**e**mark functions to be used for calculations in**English Units**

Example

To calculate specific heat in SI Units in any of the regions as defined by the IAPWS-IF97 based on available enthalpy and entropy as input, use the following:

- 1 h = 51.2 kJ/kg
- 2 s = 0.15 kJ/(kg·K)
- 3 the third argument is a string which specifies the property to be calculated by suppling the appropriate propertyID
See values of propertyIDs in the Steam Properties table below.

Based on the above provided description, the following should be entered into a cell or the formula bar:

=SteamHSsi(h, s, "cp")

The following thermodynamic and transport properties can be calculated with Steam97 Excel Add-In:

Calculable properties in SI or E units - Steam97 Excel Add-In v3.1 | ||||
---|---|---|---|---|

# | Property Name | Property ID | SI Units | English Units |

1 | Pressure | p | bar | psi |

2 | Temperature | t | °C | °F |

3 | Density | d | kg ⁄ m³ | lb ⁄ ft³ |

4 | Specific volume | v | m³ ⁄ kg | ft³ ⁄ lb |

5 | Specific enthalpy | h | kJ ⁄ kg | Btu ⁄ lb |

6 | Specific entropy | s | kJ ⁄ (kg•K) | Btu ⁄ (lb•°F) |

7 | Specific internal energy | u | kJ ⁄ kg | Btu ⁄ lb |

8 | Specific isobaric heat capacity | cp | kJ ⁄ (kg•K) | Btu ⁄ (lb•°F) |

9 | Specific isochoric heat capacity | cv | kJ ⁄ (kg•K) | Btu ⁄ (lb•°F) |

10 | Speed of sound | w | m ⁄ s | ft ⁄ s |

11 | Isentropic exponent | kapa | - | - |

12 | Specific Helmholtz free energy | H | kJ ⁄ kg | Btu ⁄ lb |

13 | Specific Gibbs free energy | G | kJ ⁄ kg | Btu ⁄ lb |

14 | Compressibility factor | Z | - | - |

15 | Steam quality | x | % | % |

16 | Region | region | - | - |

17 | Isobaric volume expansion coefficient | alpha | 1 ⁄ K | 1 ⁄°F |

18 | Isothermal compressibility | Kt | 1 ⁄ MPa | 1 ⁄ psi |

19 | Partial derivative (dV/dT)p | dvdt | m³ ⁄ (kg•K) | ft³⁄(lb•°F) |

20 | Partial derivative (dV/dP)T | dvdp | m³ ⁄ (kg•MPa) | ft³ ⁄ (lb•psi) |

21 | Partial derivative (dP/dT)v | dpdt | MPa ⁄ K | psi ⁄ °F |

22 | Partial derivative (dP/dV)T | dpdv | MPa•kg ⁄ m³ | psi•lb ⁄ ft³ |

23 | Isothermal Joule-Thomson coefficient | iJTC | kJ ⁄ (kg•MPa) | Btu ⁄ (lb•psi) |

24 | Joule-Thomson coefficient | JTC | K ⁄ MPa | °F ⁄ psi |

25 | Dynamic viscosity | dv | µPa•s | lb ⁄ (ft•h) |

26 | Kinematic viscosity | kv | mm² ⁄ s | ft²/h |

27 | Thermal conductivity | tc | W ⁄ (K•m) | Btu ⁄ (h•ft•°F) |

28 | Thermal diffusivity | td | mm² ⁄ s | ft² ⁄ h |

29 | Prandtl number | Pr | - | - |

30 | Surface tension | Sigma | mN ⁄ m | lbf ⁄ ft |

To download a list of all available properties in the PDF format, switch to the "

Downloads" tab and go to the section "Quick reference documents".

The entire set of equations of the IAPWS-IF97, used by the library for calculation of thermodynamic properties, is defined by the following temperature and pressure range:

- 273.15 K <= T < = 1073.15 K p < = 100 MPa
- 1073.15 K < T < = 2273.15 K p < = 50 MPa

**Fig.1** Steam table regions defined in the IAPWS-IF97

The following screenshots demonstrate how to use the library, it's a 4 step process.

1.(a) Start Excel and press the "Insert Function" toolbar button.

1.(b) Alternatively, start Excel and press the "Insert Function" menu item.

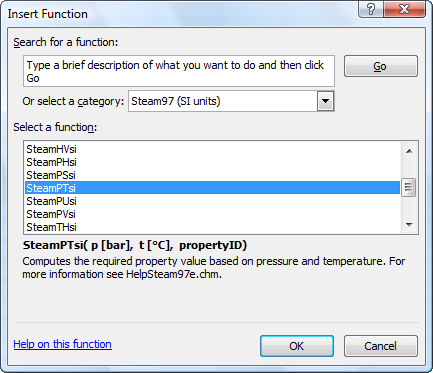

2. Select a Steam97 library (SI or English units).

3. Select a function and press the OK button.

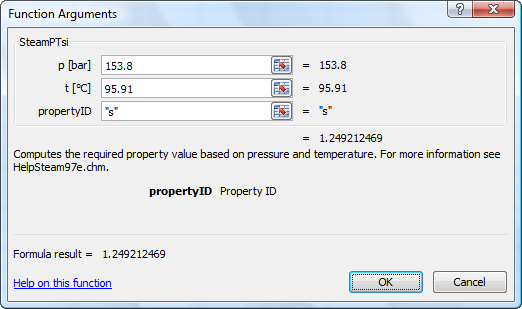

4. Enter input parameters and press the OK button.

NOTE: You don't have to put quotes around the property ID, they are inserted automatically.

**That's it**, the result will be displayed in the selected cell.

The

release versionof the Steam97 Excel Add-In library contains "modCallFunction" module which provides VBA wrapper utility functions.The utility function

CallFunctionmakes it easy to call Steam97.xll functions from VBA. For more information please refer to the help file provided in both demo and release versions.

This excerpt from the code demonstrates how to calculate heat of evaporation for given saturation temperature.

- 'Calculate saturation pressure for given temperature
- ps = CallFunction("SatTXsi", t, xLiquid, "p")
- Worksheets("Heat of Evaporation").Cells(row, 2).Value = ps
- 'Calculate specific enthalpy of the liquid on the saturation line
- hLiquid = CallFunction("SatTXsi", t, xLiquid, "h")
- Worksheets("Heat of Evaporation").Cells(row, 3).Value = hLiquid
- 'Calculate specific enthalpy of the vapor on the saturation line
- hVapor = CallFunction("SatTXsi", t, xVapor, "h")
- Worksheets("Heat of Evaporation").Cells(row, 4).Value = hVapor
- 'Calculate heat of evaporation
- delta_h = hVapor - hLiquid
- Worksheets("Heat of Evaporation").Cells(row, 5).Value = delta_h

This excerpt from the code demonstrates how to calculate steam turbine efficiency.

- 'Calculate specific enthalpy
- hIn = CallFunction("SteamPTsi", pIn, tIn, "h")
- Worksheets("Steam Turbine").Cells(row, 3).Value = hIn
- 'Calculate specific entropy
- sIn = CallFunction("SteamPTsi", pIn, tIn, "s")
- Worksheets("Steam Turbine").Cells(row, 4).Value = sIn
- Worksheets("Steam Turbine").Cells(row, 5).Value = pOut
- Worksheets("Steam Turbine").Cells(row, 6).Value = tOut
- 'Calculate specific enthalpy
- hOut = CallFunction("SteamPTsi", pOut, tOut, "h")
- Worksheets("Steam Turbine").Cells(row, 7).Value = hOut
- 'Calculate specific enthalpy
- hs = CallFunction("SteamPSsi", pOut, sIn, "h")
- Worksheets("Steam Turbine").Cells(row, 8).Value = hs
- 'Calculate steam turbine efficiency
- eta = (hIn - hOut) / (hIn - hs) * 100
- Worksheets("Steam Turbine").Cells(row, 9).Value = eta

The setup program will automatically install the library in Excel.

To install the library successfully you must have at leaststandard user privilegeson your computer.

The built-in ZIP support on Windows 10 is buggy and sometimes cannot open a valid (not empty) zip file.

Use **7-zip** (free and open source) or some other reliable program for zip file processing.

For Excel 2007 / 2010 (32 bit) / 2013 (32 bit) / 2016 (32 bit) / 2019 (32 bit) / 365 desktop (32 bit)

- Download Steam97 Excel Add-In version (3.1) - demo (32 bit)

For Excel 2010 (64 bit) / 2013 (64 bit) / 2016 (64 bit) / 2019 (64 bit) / 365 desktop (64 bit)

- Download Steam97 Excel Add-In version (3.1) - demo (64 bit)

You can also evaluate the Steam Tables library (based on IAPWS-IF97) online, visitSteam Tables Calculatorweb application. It uses the same calculation engine as the Steam97 Excel Add-In.

- List of available properties in Steam97 Excel Add-In

- List of available functions in Steam97 Excel Add-In

- logP-H diagram in SI units generated with Steam97 Excel Add-In
